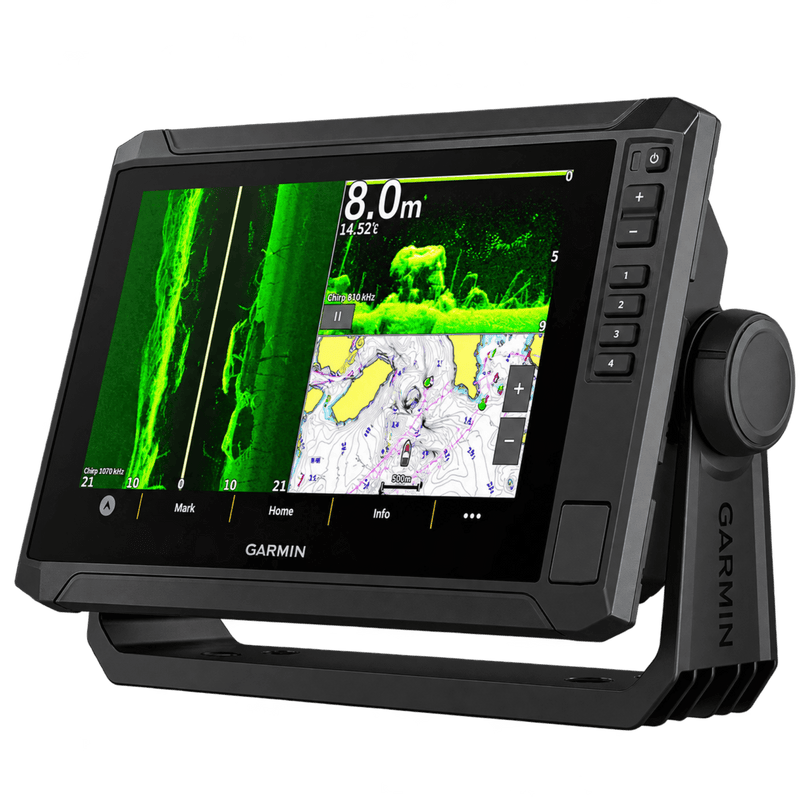

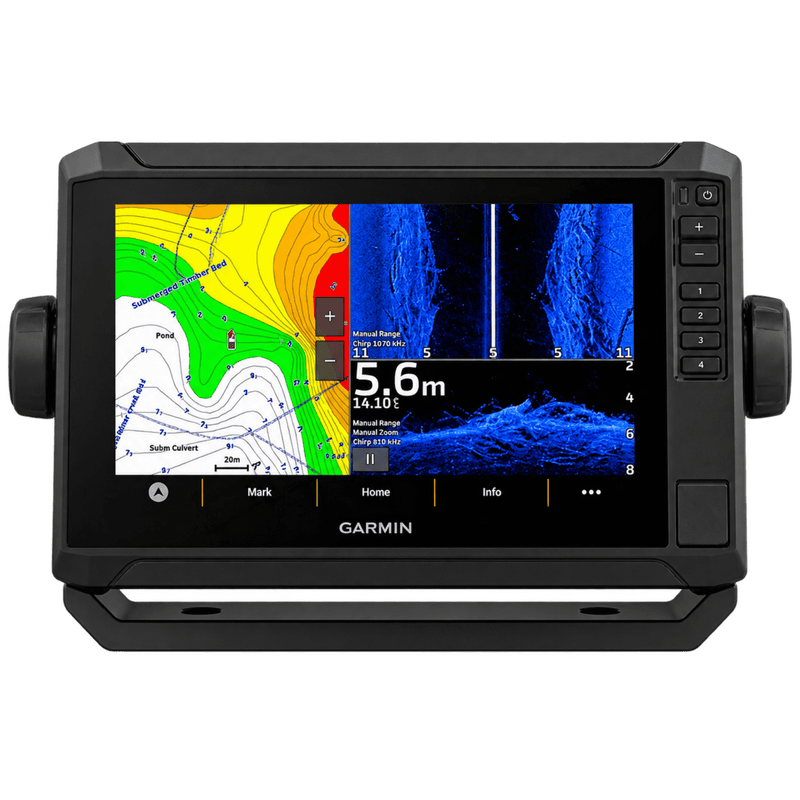

Garmin Echomap UHD2 95SV + GT54UHD-TM Transducer Canada Navionics

Take your fishing experience to the next level with the Garmin ECHOMAP UHD2 Chartplotter. Featuring advanced sonar technology, detailed mapping and a bright touchscreen display with keyed-assist, the ECHOMAP UHD2 gives anglers the tools they need to locate fish, identify underwater structure and navigate with confidence.

KEY FEATURES

• 9" Touchscreen Display: Bright, easy-to-read display with keyed-assist for convenient operation on the water.

• Advanced Sonar Technology: Supports Garmin traditional CHIRP, ClearVü™ and SideVü™ scanning sonar for exceptional underwater detail.

• LiveScope™ Compatible: Supports Garmin LiveScope live-scanning sonar for real-time views of fish and underwater structure. Compatible equipment sold separately.

• Vivid Colour Palettes: High-contrast sonar colours help distinguish fish, structure and underwater targets.

• GT56 Transducer Bundle: Select 9" models include a GT56 transducer for high-definition scanning sonar.

• Garmin Navionics+™ Mapping: Select models include preloaded charts with depth range shading and a 1-year subscription for daily map updates.

• Wireless Networking: Share sonar information, waypoints and routes with compatible ECHOMAP UHD2 chartplotters.

• ActiveCaptain® App: Built-in Wi-Fi® connectivity provides access to software updates, smart notifications, OneChart™ and Garmin Quickdraw™ Community data.

• Auto Guidance+™ Technology: Compatible models with Garmin Navionics+ charts support downloadable Auto Guidance+ routing through the ActiveCaptain app.

• Multi-Band GPS: Improved positioning accuracy in challenging environments with multi-band, multi-constellation GPS.

• Force® Trolling Motor Integration: Wirelessly connect to a compatible Garmin Force trolling motor to follow routes, navigate to waypoints, adjust speed and monitor battery life.

• Power-Pole® Integration: Compatible with select Power-Pole shallow water anchoring systems for advanced boat positioning and anchor controls.

• Power-Pole CHARGE Integration: Monitor and manage battery power through compatible CHARGE Marine Power Manager systems.

TECHNICAL SPECIFICATIONS

GENERAL

• Dimensions: 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)

• Weight: 2.9 lbs (1.3 kg)

• Water Rating: IPX7

• Display Type: WSVGA, TN

• Display Size: 9.0" diagonal (22.9 cm)

• Display Resolution: 1024 x 600 pixels

• Display Operation: Touchscreen with keyed-assist

• Mounting Options: Bail or flush mount

MAPS & MEMORY

• Memory Card: 1 microSD™ card slot (32 GB maximum)

• Waypoints: 5,000

• Track Points: 50,000

• Saved Tracks: 50

• Navigation Routes: 100

• Mapping: Garmin Navionics+ Inland and Coastal charts on select models

• Auto Guidance+: Downloadable through the ActiveCaptain app on compatible chart-equipped models

• Additional Mapping Support: Garmin Navionics Vision+™, BlueChart g3, LakeVü g3 and Garmin Quickdraw Contours, where compatible

GPS & NAVIGATION

• GPS Receiver: Built-in 10 Hz receiver

• Multi-Band GPS: Multi-band, multi-constellation positioning

• Satellite Systems: GPS, GLONASS, Galileo and BeiDou

• WAAS Support: Supported

• Navigation: Waypoint marking, route planning and track recording

SONAR FEATURES

• Sonar Power Output: 500 W

• Traditional Sonar: Built-in single-channel CHIRP

• Traditional Frequencies: 50/77/83/200 kHz; Low, Medium and High CHIRP

• ClearVü™ Sonar: Built-in 260/455/800/1000/1200 kHz

• SideVü™ Sonar: Built-in 260/455/800/1000/1200 kHz

• LiveScope™ Support: Compatible with supported Garmin LiveScope systems

• Panoptix™ Support: Compatible with supported systems

• Vivid Scanning Sonar: High-contrast colour palettes for improved target separation

ELECTRICAL FEATURES

• Power Input: 9–18 V DC

• Typical Current Draw at 12 V DC: 1.72 A

• Maximum Current Draw at 12 V DC: 3.5 A

• Maximum Power Usage at 10 V DC: 20.7 W

CONNECTIVITY

• Garmin Marine Network Ports: 1

• 12-Pin Transducer Ports: 1

• Wireless Connectivity: Built-in Wi-Fi®

• ActiveCaptain® Compatible: Yes

• Garmin Force® Integration: Supported

• Wireless Data Sharing: Compatible ECHOMAP UHD2 devices

• Power-Pole® Integration: Supported with compatible equipment
